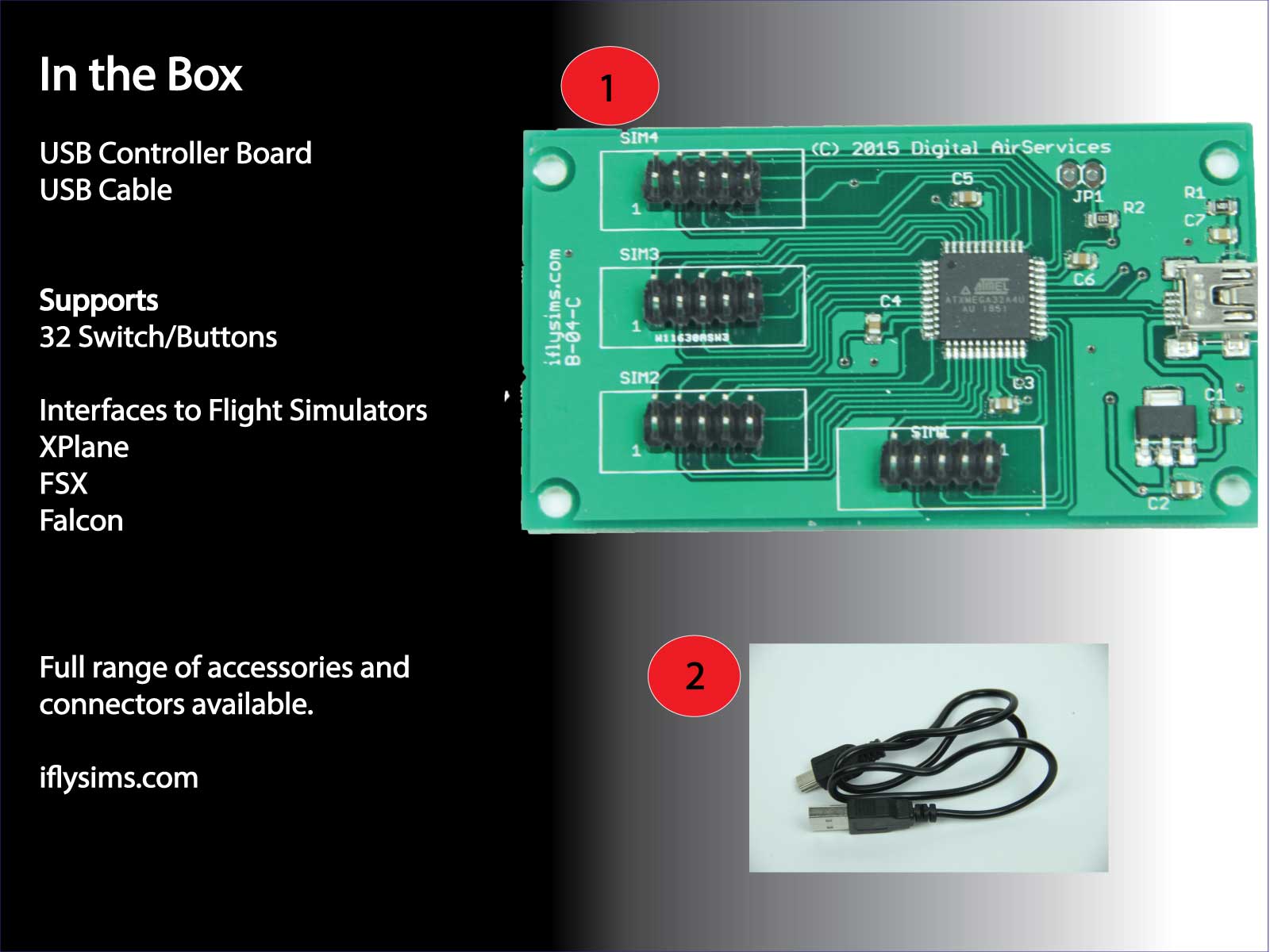

Includes USB Cable

32 Button Controller Board

A micro computer board which connects to your Computer via USB. The board has 32 connectors which interface to any push button to receive the switch signal and then sends commands your flight simulator via the USB port.

US$35.00

Description

The 32 Button Interface is a premium performance microcontroller based controller board. True Plug and Play requiring no separate drivers and will be recognized by your PC as a game controller board. There are no matrix keys allowing simultaneous pressing of buttons as each button is connected to a separate I/O line on the microcontroller. Typical uses include Primary Flight Display (PFD) and MFD buttons. Each button can be mapped to any function using Flight simulator button assignments. Fully tested with variety of Flight Simulators including FSX, X-Plane and various plug ins including SimAvio. Connect only with momentary type buttons or switches. Do not use switches that are not momentary i.e. ON/OFF switches. We recommend Single Pole Double Throw (SPDT) toggle switches and rockers or push button momentary buttons. If you are looking to interface standard switches including rotary switches this board will not meet your needs (we will have one soon)

Typical Button Assignments

• Primary Flight Display (PFD) Buttons
• Multi Function Display (PFD) Buttons
• Press to Talk (PTT)
• Trim Control
• Fire Weapon
• Switch Active COM & NAV frequencies
• Ident
