Includes USB Cable

16 Rotary Decoder Board

A micro computer board which connects to your Computer via USB. The board has 16 Inputs for standard Rotary Encoder. Turning the Rotary encoder will send a button signal to your flight simulator depending on the direction of rotaion. This is great for HEADING, OBS and NAV functions. .

US$35.00

Description

The 16 Rotary Decoder Board will connect to Quadrature Encoders. Turning the dial one direction will send a "pulse" to your Flight Simulator to tune up or down any knob type instrument. Using a premium performance microcontroller based controller board. True Plug and Play requiring no seperate drivers and will be recognised by your PC as a game controller board. There are no matrix keys allowing simulatanious pressing of buttons as each button is connected to a seperate I/O line on the microcontroller. Typical uses include Heading, Navigations Dials and any other Knob type control. Each knob is mapped to 2 signals (Clockwise and Counter Clockwise) using any function using Flight simulator assignments. Fully tested with variety of Flight Simulators including FSX, X-Plane and various plug ins including SimAvio. Dual Rotary Encoders will use 2 Channels (4 I/O Lines)

Typical Dial Assignments

• Primary Flight Display (PFD) DIALS
• FMS DIAL
• Tune OBS
• Tune Frequency
• Dial Heading
• Any DIal

User Manual - 16 Rotary Decoder Board B0-4-E

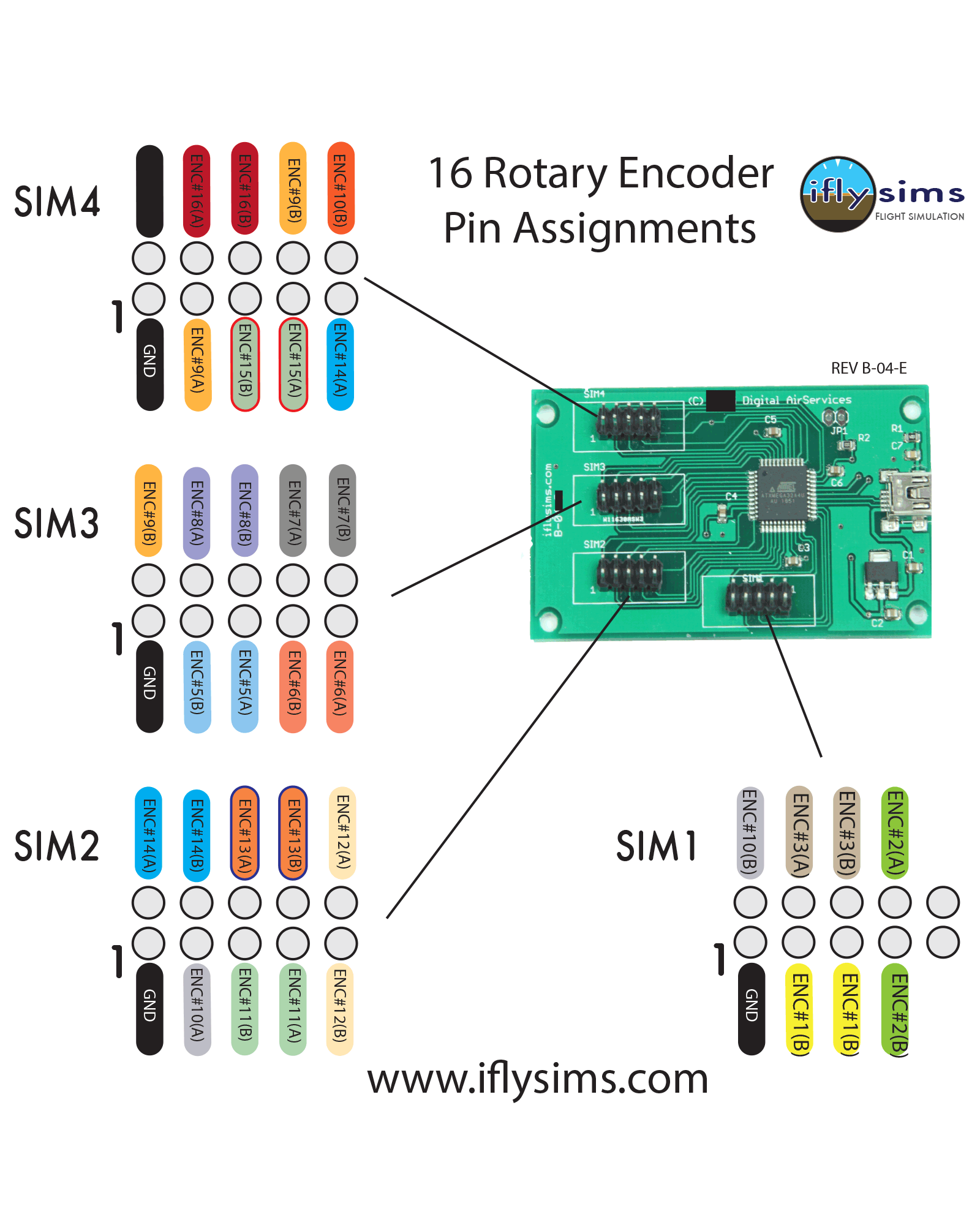

16 Rotary Pin Assignment

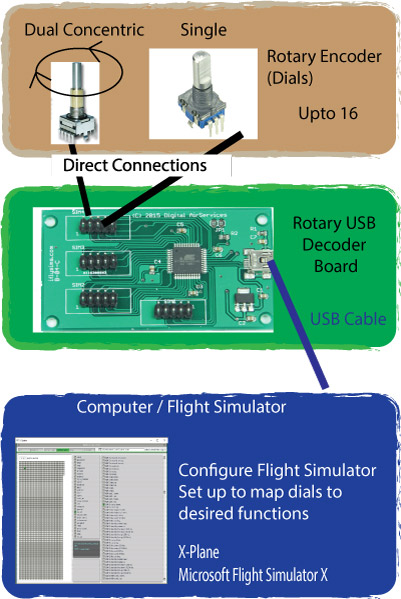

Block Diagram of Rotary Encoder
